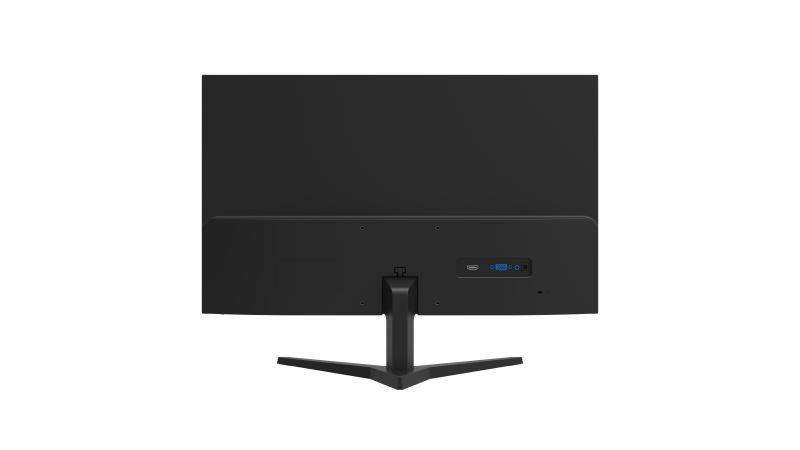

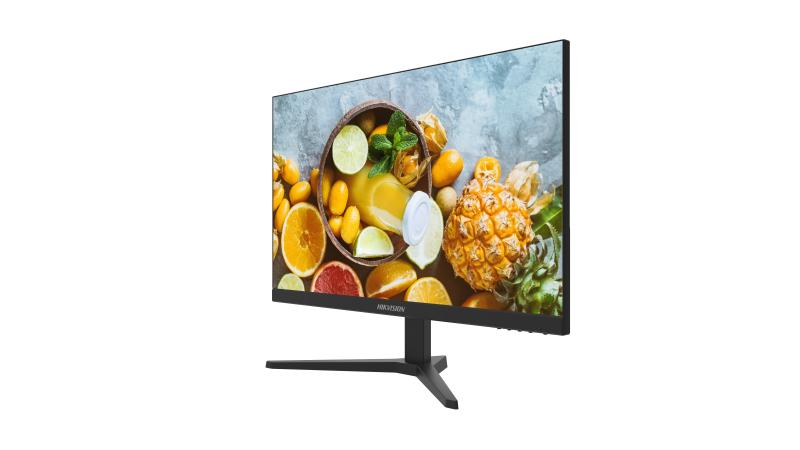

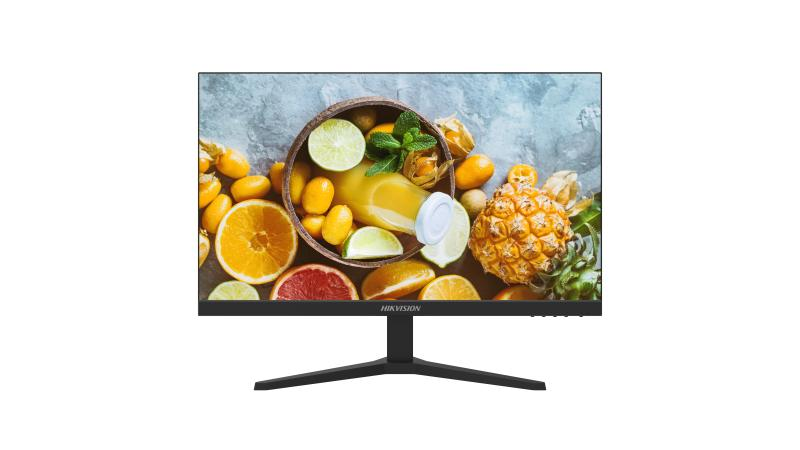

23.8 inch FHD IPS 100Hz V-bracket

• 100 Hz refresh rate, more fluid and life-like video.

• IPS technology for wide, 178° ultra-wide view screen.

• Ultra-thin device body with ultra-thin border for 3 sides.

• 8 bit LVDS FHD (1920 × 1080) display.

• 3D noise reduction.

• Low blue light design for eye care.

• Dual interface of HDMI and VGA.

• Support VESA wall mount.

• Display

• Screen Size23.8 inch

• Active Display Area527.04 (H) mm × 296.46 (V) mm

• Resolution1920 × 1080

• BacklightE-LED

• Pixel Pitch0.2745 (H) mm × 0.2745 (V) mm

• Brightness300 cd/m²

• Viewing Angle178° (H) / 178° (V)

• Color Depth8 bit ,16.7 M

• Contrast Ratio1300 : 1

• Response Time14 (Typ) ms , 5 (OD) ms

• Refresh RateTyp. 60 Hz , Max. 100Hz

• HazeHaze 25%, 3H

• Reliability7 × 24 H

• Color Gamut72% NTSC

• Interface

• Video & Audio InputHDMI 1.4 × 1, VGA × 1

• Video & Audio OutputAudio Out × 1

• Data Transmission InterfaceNone

• Control InterfaceNone

• Power

• Power SupplyDC 12V, 2.5A

• Power Consumption≤ 25 W

• Standby Consumption≤ 0.5 W

• Working Environment

• Working Temperature0℃ to 40 ℃ (32 ℉ to 104 ℉)

• Working Humidity20% to 90% RH (Non-Condensing)

• Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)

• Storage Humidity10% to 90% RH (Non-Condensing)

• General

• Casing MaterialPlastic

• VESA100 mm × 100 mm (4 - M4 × 10 mm)

• Bezel Width1.8 mm (top/left/right), 21.4 mm (bottom)

• Product Dimensions (W × H × D)

  With base: 538.40 (W) mm × 408.21 (H) mm × 186.37(D) mm

  (21.20 (W) × 16.07 (H) × 7.34 (D) ) inch

  Without base: 538.40 (W) mm × 324.79 (H) mm × 37.50 (D) mm

  (21.20 (W) × 12.79 (H) × 1.48 (D) ) inch

• Package Dimensions (W × H × D)600 (W) mm × 408 (H) mm × 94 (D) mm

• Net Weight2.8 ± 0.5 kg

• Gross Weight3.8± 0.5 kg

• Packing ListMonitor × 1, Base component × 1, Power adapter (12 V, 2.5 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1

• Remarks

  The base is included by default.

  The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
