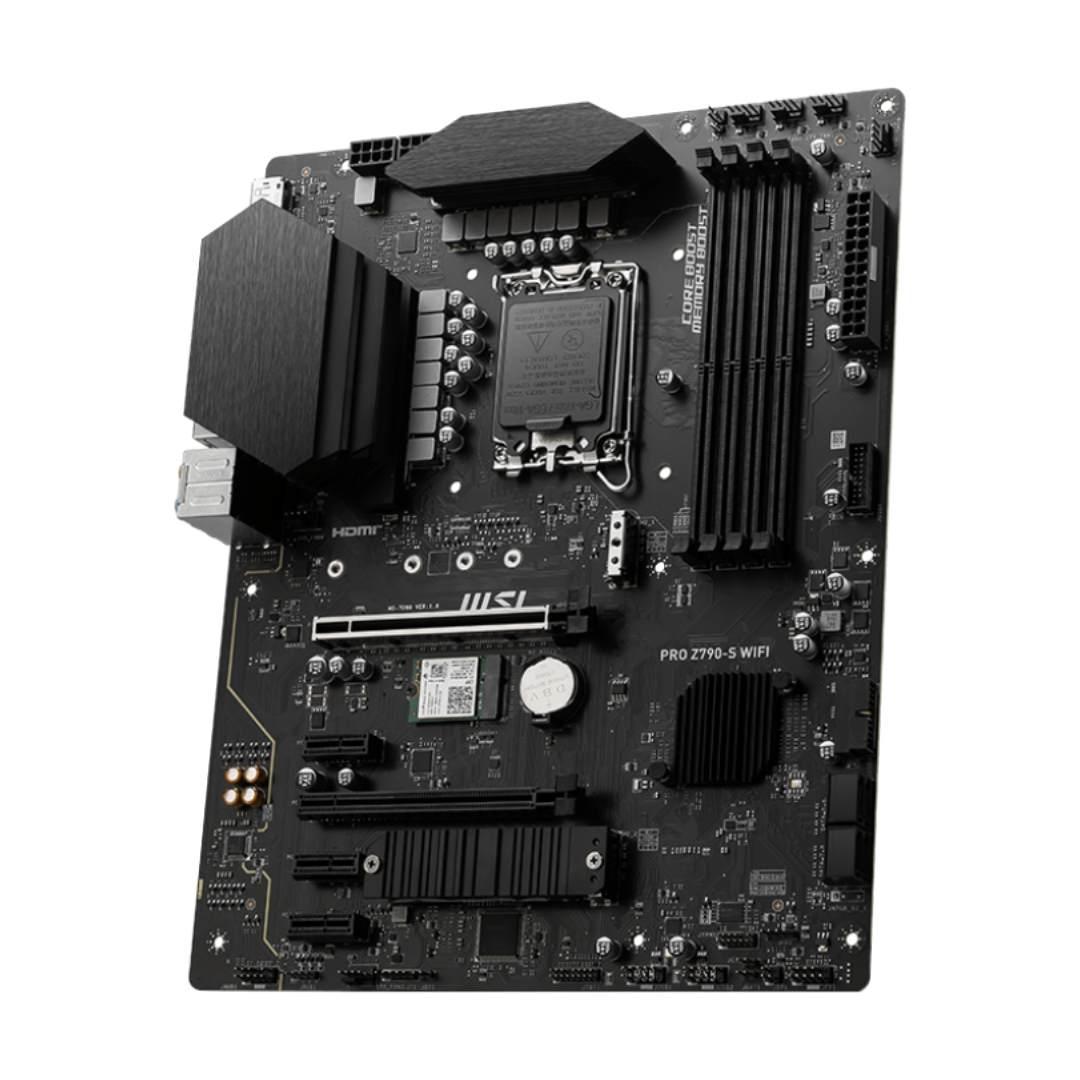

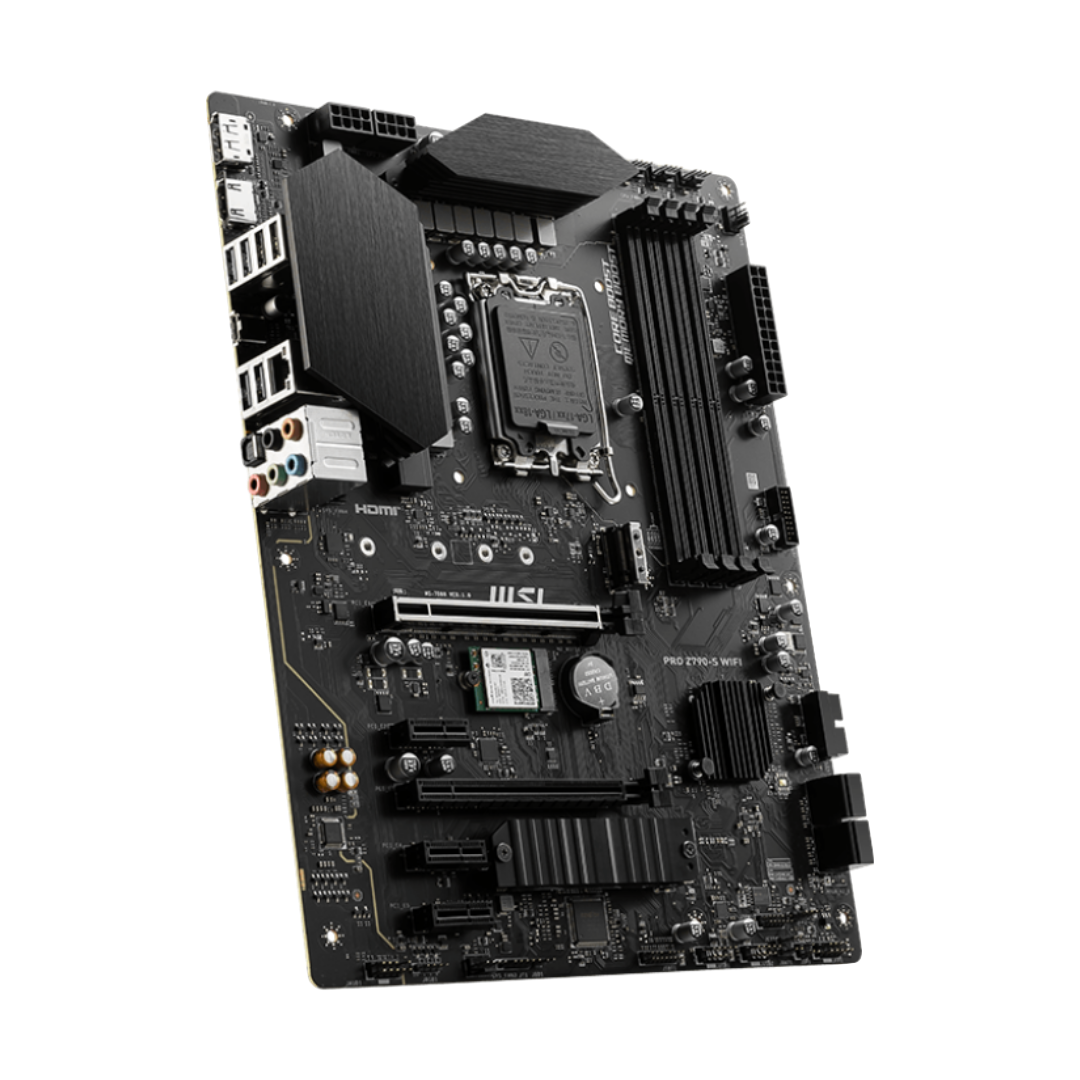

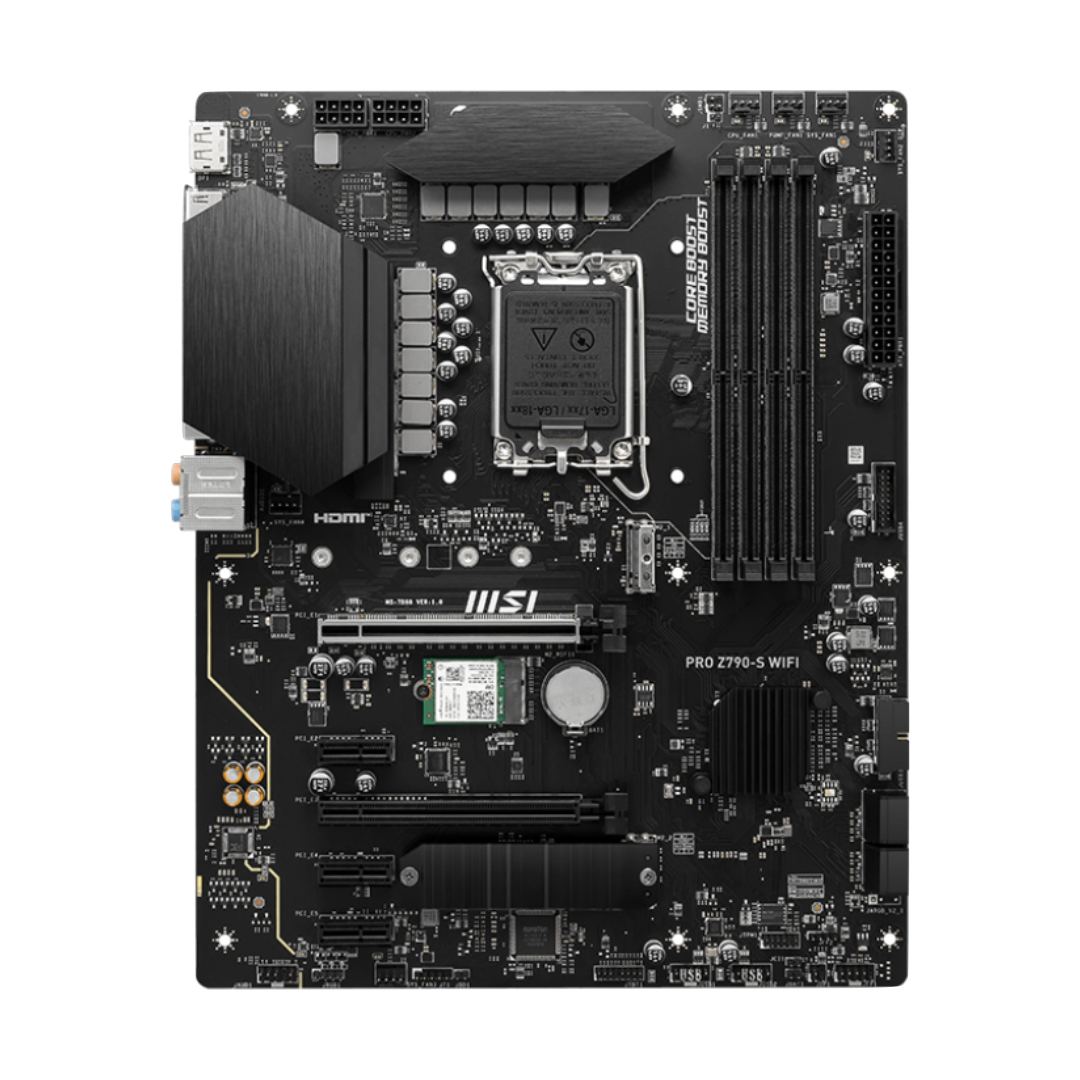

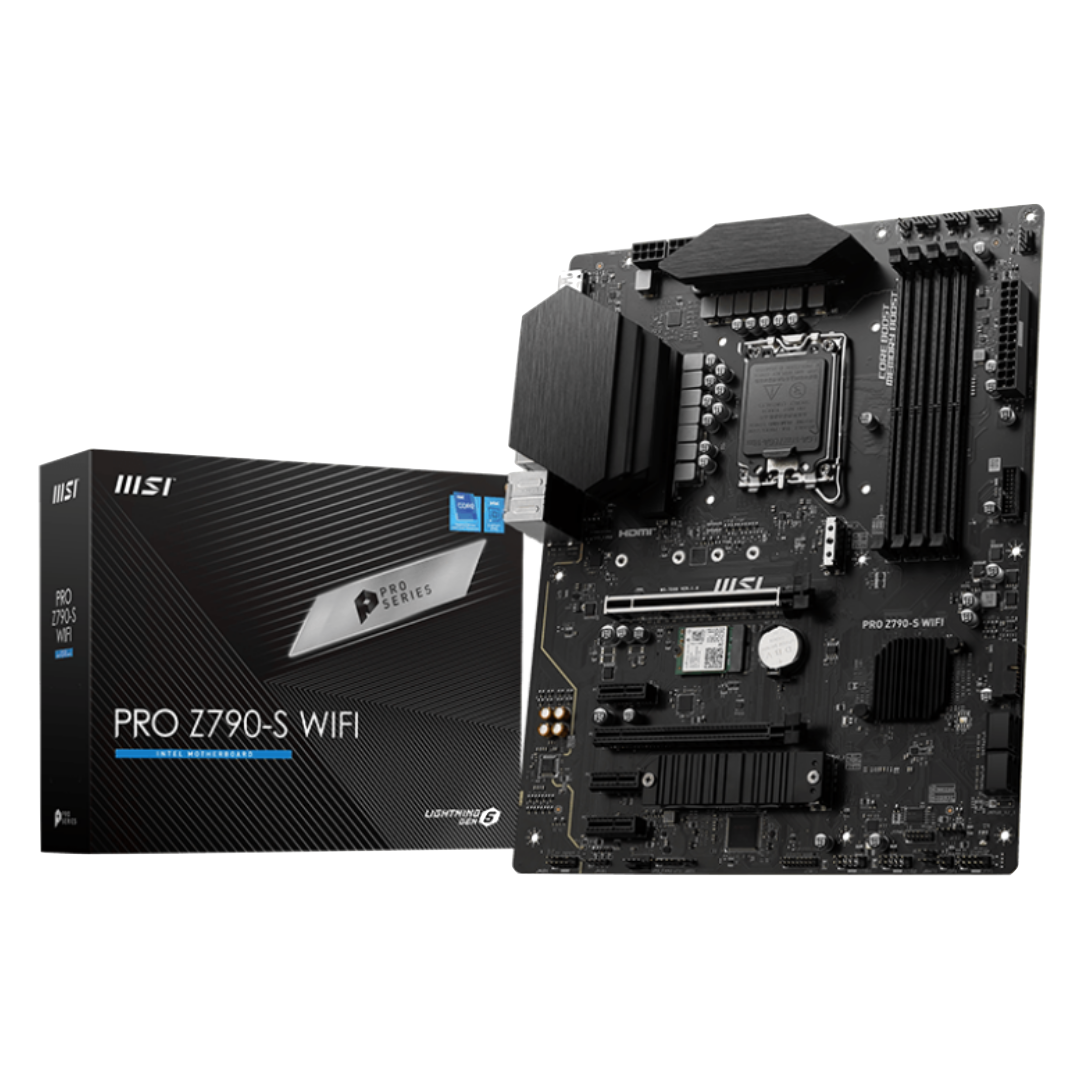

PRO Z790-S WIFI

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6600+MHz (OC)
Enhanced Power Design: 12+1+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Chipset	INTEL Z790
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6600+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot 3x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear)
LAN	Realtek® RTL8125BG 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports
WIRELESS LAN & BLUETOOTH	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
BACK PANEL PORTS	DisplayPort HDMI™ USB 2.0 USB 3.2 Gen 2x2 20Gbps (Type-C) 2.5G LAN Audio Connectors USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) S/PDIF-OUT
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	ATX 243.84mmx304.8mm

PRO Z790-S WIFI

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket

Supports DDR5 Memory, Dual Channel DDR5 6600+MHz (OC)

Enhanced Power Design: 12+1+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost

Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Chipset

INTEL Z790

CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

Memory

4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6600+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Onboard Graphics

1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

2x PCI-E x16 slot
3x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 20Gbps Type C (Rear)

LAN

Realtek® RTL8125BG 2.5Gbps LAN

Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports

WIRELESS LAN & BLUETOOTH

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

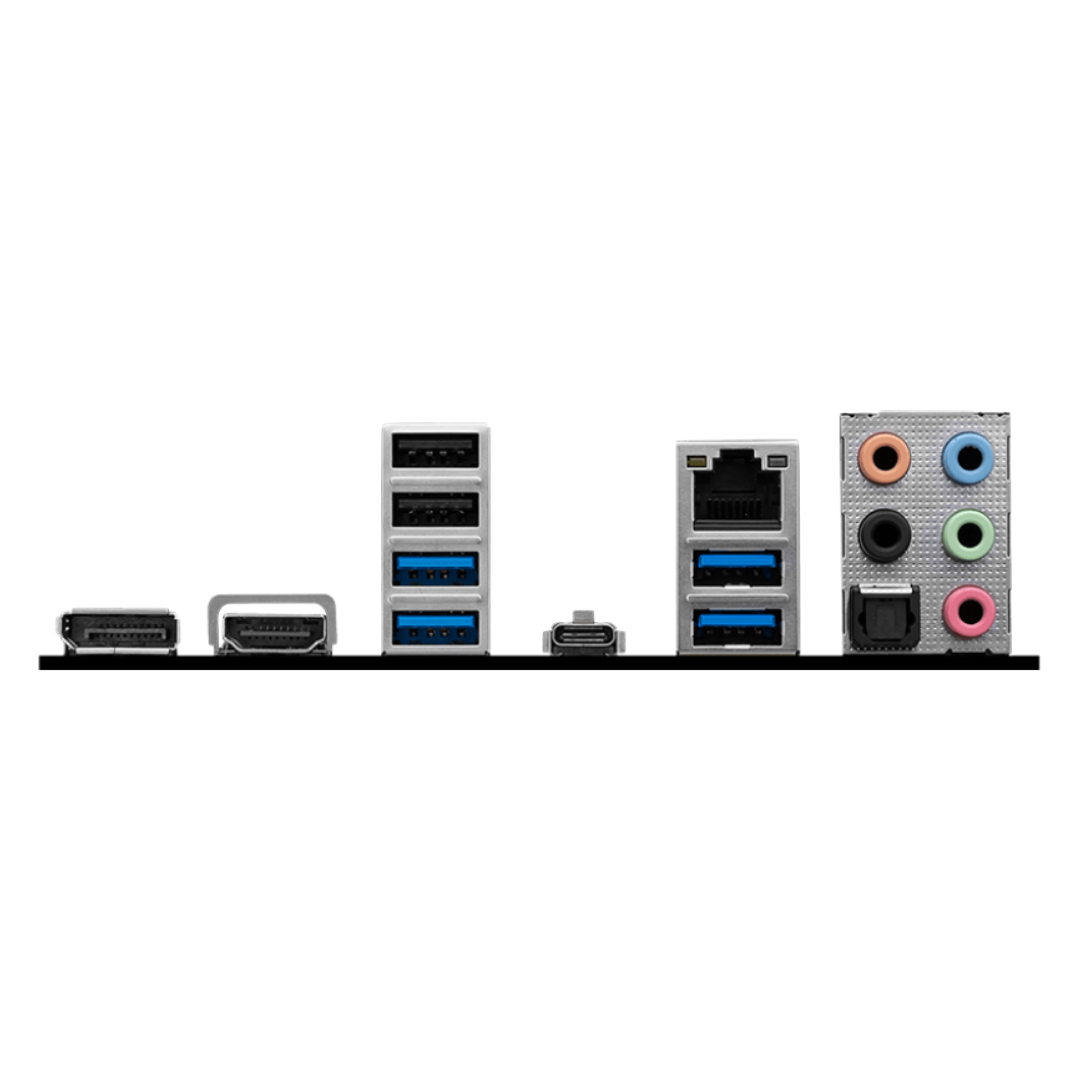

BACK PANEL PORTS

DisplayPort
HDMI™
USB 2.0
USB 3.2 Gen 2x2 20Gbps (Type-C)
2.5G LAN
Audio Connectors
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
S/PDIF-OUT

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Info

ATX
243.84mmx304.8mm
